Smart AC EV Chargers for Everyday Charging

Owl
Input supply: Single phase 230 VAC @ 16A
Sockets: 3 Sockets
Power output: 1.1 kW
Connector type: IEC 60309 (3-pin female connector)
Dimensions: 480 × 250 × 130 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current

Robin
Input supply: Single phase 230 VAC @ 16A
Sockets: 1 Socket
Power output: 1.1 kW
Connector type: IEC 60309 (3-pin female connector)
Dimensions: 480 × 250 × 130 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current

Albatross
Input supply: 3 phase 400-415V AC @ 15A Each Phase
Sockets: 3 Sockets
Power output: 3.3 kW Max, per output
Connector type: IEC 60309 (3-pin female connector)
Dimensions: 670 × 333 × 165 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current

Eagle
Input supply: 3 phase 400-415V AC @ 32A Each Phase
Sockets: 2 Cables
Power output: 7.4 kW Max, per output
Connector type: Type - 2 AC
Dimensions: 630 × 333 × 165 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current

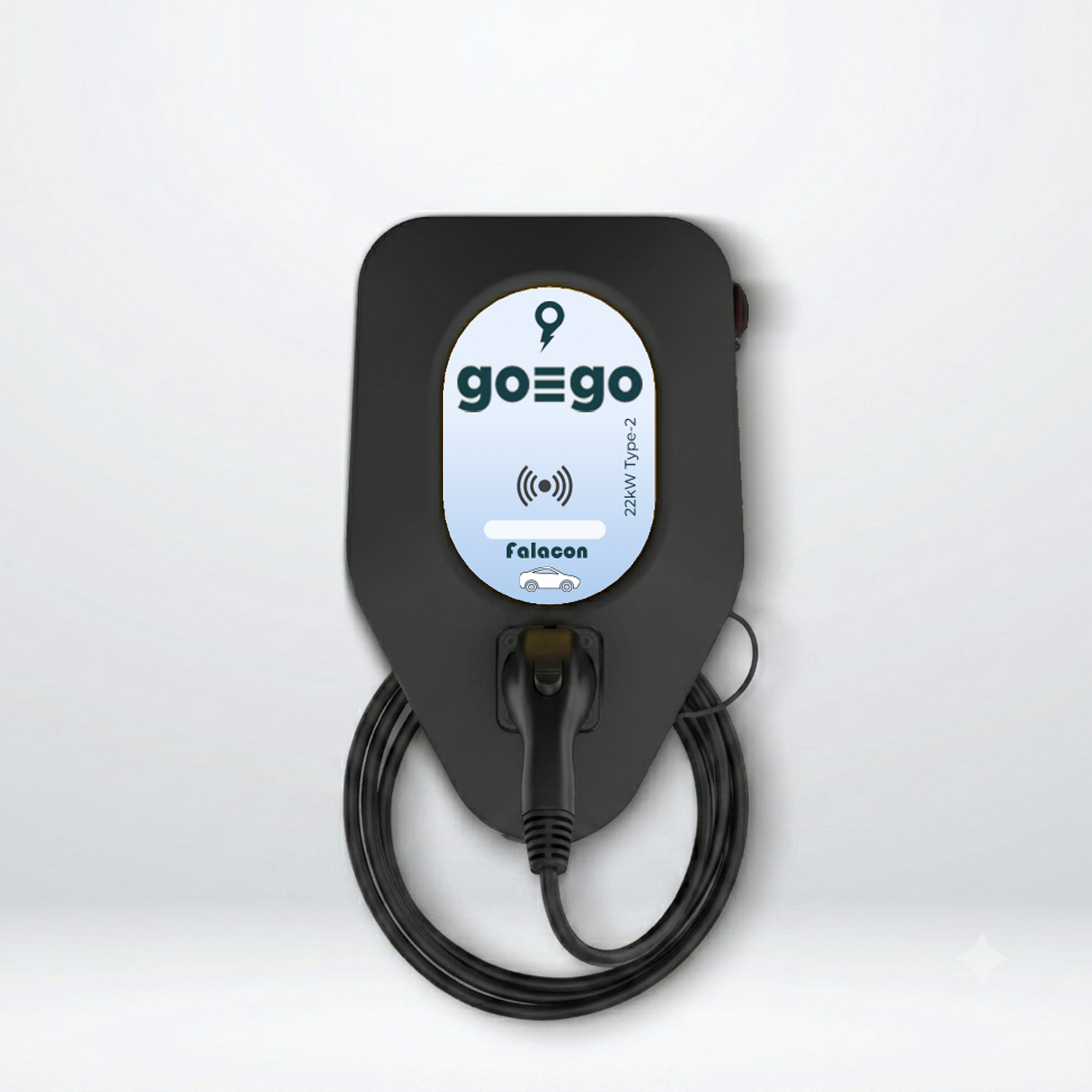

Falcon
Input supply: 3 phase 400-415 VAC @ 32A each phase
Sockets: Single Cable
Power output: 22 kW Max, per output
Connector type: Type - 2 AC
Dimensions: 630 × 333 × 165 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP54
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over-temperature, ground fault, residual current
.png)
Hawk
Input supply: Single phase 230 VAC @ 32A
Sockets: 1 cable
Power output: 7.4 kW
Connector type: Type-2 AC
Dimensions: 450 × 220 × 120 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP65
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over temperature, ground fault, residual current
.png)
Hawk Pro
Input supply: Three phase 400-415 VAC @ 16A
Sockets: 1 cable
Power output: 11 kW
Connector type: Type-2 AC
Dimensions: 450 × 220 × 120 mm (H×W×D)
Mounting type: Wall & pole mount
IP rating: IP65
Protection: Over voltage, under voltage, over current, short circuit, surge protection, over temperature, ground fault, residual current
